regify provider loadbalancer setup
Loadbalancer setup
If you run a VM environment with full redundancy (eg redundant hosts or cluster, redundant drives and redundant connectivity), you do not need to set up a redundant regify provider. In this case, you might simply set up one instance on your environment and use this together with a good backup policy.
In case you want to run the system on non redundant host(s) or on real hardware, please consider implementing one of the following redundant setup options.
Minimum-redundancy installation

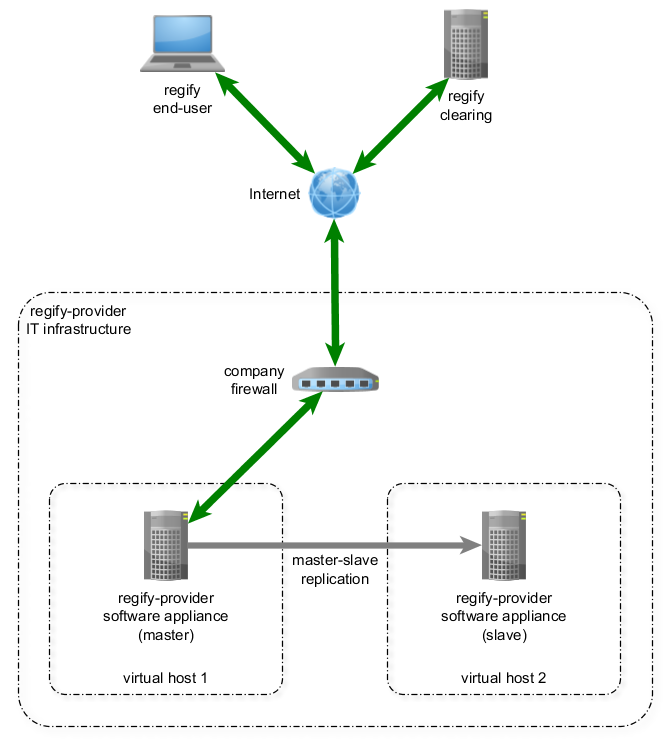

A regify-provider must be operated in a redundant setup. The following diagram shows a minimalistic setup as an example:
This minimalistic setup allows a switch to the slave provider in case of a malfunction of the master provider. In this case, the switch has to be done manually. Such setup can be recommended as an inexpensive, fairly resilient start-up constellation.
Fully redundant installation

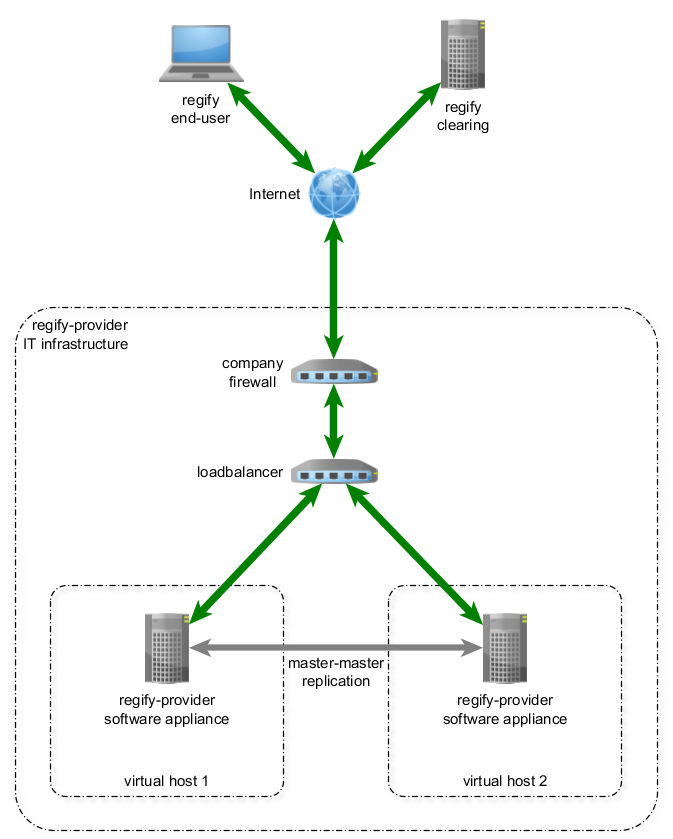

The following diagram shows a more sophisticated setup with fully redundant instances of regify-providers and a redundant clearing connection:
Such setup ensures high availability and illustrates how scaling can be achieved. Both the connections to the regify clearing-service and the complete regify application run in fully redundant mode. The databases are synchronized in real time (master-master synchronization). Alternatively, your own MySQL cluster may get used. The loadbalancer distributes the load of incoming requests between the two regify-provider appliances.
Loadbalancer setup
If you plan to use a loadbalancer in your infrastructure, we recommend you to use the following setup:
-
Do SSL bypassing, so the regify appliance offloads https.
-
Enable session persistance on the loadbalancer (important) [1].
-
Chose master-master replication on the appliances (important).
-
Configure loadbalancer to forward all http:// connections to https://
| 1 |
Please use the source IP address for sticky sessions / session persistance. The regify session cookies are changing to prevent session hijacking and, therefore, can not get used. |

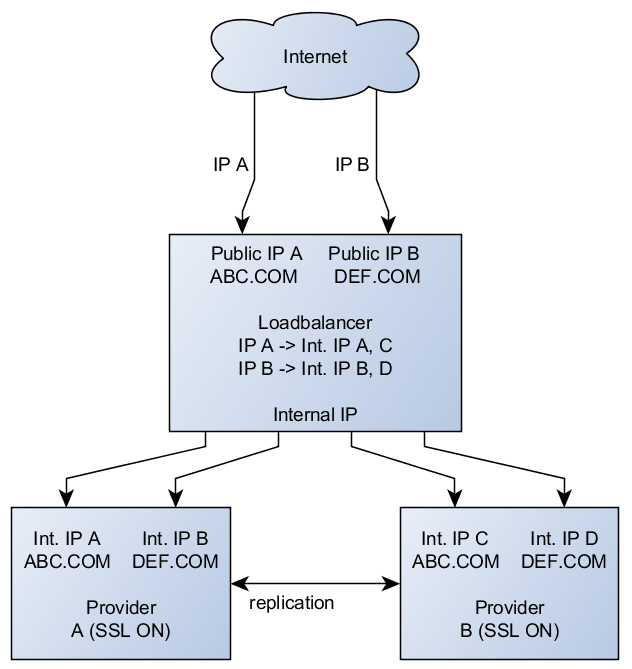

The following setup example shows the IP setup in case of a regify provider hosting two domains on two public IP addresses (main provider ABC.COM and one subprovider DEF.COM).
Example IP addresses:
Public IP A: 123.123.123.111 (DNS to ABC.COM)
Public IP B: 123.123.123.112 (DNS to DEF.COM)
Internal IP A: 10.10.10.1
Internal IP B: 10.10.10.2
Internal IP C: 10.10.10.3
Internal IP D: 10.10.10.4
Please note that, from provider 6.0, a single IP address may also be used for multiple sub-providers. Therefore, multiple public IP addresses are not mandatory.
